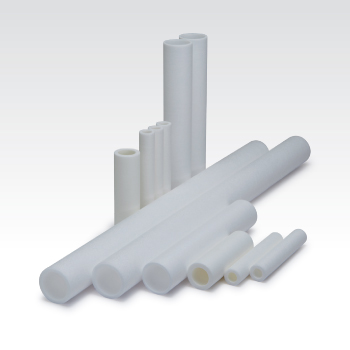

High Stable Porous Tube
Uniformized Pore Sizes
Proven Tubular Membrane supporting Media
Increased Surface Roughness
No Membrane Delamination
The materials are on the FDA listed as acceptable
things to be Portable
and Edible.
-
Specification
- - Internal Diameter : 11mm, 20mm, 28mm
- - Length : Single Type - under 1,000mm,
Bonded Tube Type - over 1,000mm
- - Pore Size : 60 micron
- - Air Flow Rate : 100 LPM (at 0.020 bar)
-
Advantage in use
- - Increased Flux
- - Increased Life Cycle
- - Improved Backpulse Efficiency
Ordering Information
For example : If You want to Purchase PT051117, You CAN Choose relevant items, At the each of DATA Articles.
| Type |
Removal Ratings Grade |
In-Dia(ID) |
Out-Dia(OD) |
| PT : Porous Tube |
| Grade |
Rating(㎛) |
| 01 |
1 |
| 05 |
5 |
| 10 |
10 |
| 25 |
25 |
| 50 |
50 |
| 1H |
100 |
|
11 mm
20 mm
30 mm |
17 mm
25 mm
38 mm |
* Please refer to IN FILTER for the Removal Ratings Details.
Ordering Information
For example : If You want to Purchase PT051117, You CAN Choose relevant items, At the each of DATA Articles.
|
| Removal Ratings Grade |
| Grade |
Rating(㎛) |
| 01 |
1 |
| 05 |
5 |
| 10 |
10 |
| 25 |
25 |
| 50 |
50 |
| 1H |
100 |
|
|
| In-Dia(ID) |
11 mm
20 mm
30 mm |
|
| Out-Dia(OD) |
17 mm
25 mm
38 mm |
|
* Please refer to IN FILTER for the Removal Ratings Details.
