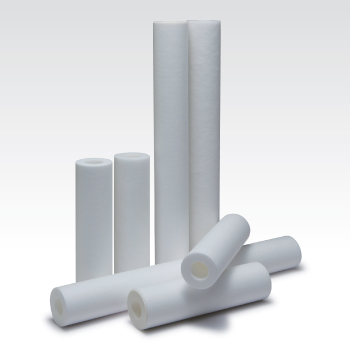

Coreless Depth Cartridge Filter
It has the used 100% PP/PE Bi-component fibers
to create 3-Dimensional Skeleton Structures.
It is the High Functional filter that maximizes the High Water Flow Rate
and Removal Efficiency of the processed water
and chemical solution.
It also maximizes the combining power of each non-woven layers.
It is the Heat-combination Chemical Free filter.
The materials are on the FDA listed as acceptable thingsto be Portable
and Edible.
And it keeps a High-level cleanness.
| Features |
Advantages |
Benefits |
100% PP/PE & 3-Dimensional Skeleton
Structures |
A Long Life cycle
and High Flow rate Skeleton structures
The Enhanced porosity
in the
cartridge filter |
Ease to see the High Flow
rate
and Efficiency in your process,
simultaneously |
| High Functional filter |
The High durability
at the high differential pressure |
Suitableness for food & beverage, and
the other regulated applications |
| Depth filtration |
The Linear Flow path
and very stable Pore size |
Keeping a High level cleanness, too |
| Features |
100% PP/PE & 3-Dimensional Skeleton
Structures |
| High Functional filter |
| Depth filtration |
|
| Advantages |
A Long Life cycle
and High Flow rate Skeleton structures
The Enhanced porosity
in the
cartridge filter |
The High durability
at the high differential pressure |
The Linear Flow path
and very stable Pore size |
|
| Benefits |
Ease to see the High Flow
rate
and Efficiency in your process,
simultaneously |
Suitableness for food & beverage, and
the other regulated applications |
| Keeping a High level cleanness, too |
|
Air Flow Specification
| Grade(㎛) |
Air Flow (lpm) |
Grade(㎛) |
Air Flow (lpm) |
| 0.5 |
1,540 |
25 |
2,437 |
| 01 |
1,810 |
50 |
2,457 |
| 05 |
2,050 |
75 |
2,547 |
| 10 |
2,150 |
100 |
2,647 |
(Air Flow at 100 kPa)
Flow Specification
- Liquid flow rate per 10" filter Cartridge
- Liquid flow rate per 10" filter Cartridge
Performance Specification
Material of
Construction |
Recommended
Operating Conditions |
Removal Ratings |
Cartridge
Dimensions |
Media :
Polypropylene/
Polyethylene
Bi-component fiber
Structure :
Coreless cartridge |
Maximum
Differential Pressure :
70psi(4.8bar) (at 25℃)
Maximum
Temperature :
(at 80℃) |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| Absolute |
Nominal |
Absolute |
Nominal |
| D5 |
6 |
0.5 |
25 |
60 |
25 |
| 01 |
13 |
1 |
50 |
95 |
50 |
| 05 |
25 |
5 |
75 |
110 |
75 |
| 10 |
35 |
10 |
1H |
150 |
100 |
| |
|
|
H5 |
200 |
150 |
|
In diameter :
30mm
Out diameter :
62 ~ 65mm
Length(mm) :
250, 500, 750, 1000
254, 508, 762, 1016 |
Performance Specification
Material of
Construction |
Media :
Polypropylene/
Polyethylene
Bi-component fiber
Structure :
Coreless cartridge |
|
Recommended
Operating Conditions |
Maximum
Differential Pressure :
70psi(4.8bar) (at 25℃)
Maximum
Temperature :
(at 80℃) |
|
| Removal Ratings |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| Absolute |
Nominal |
Absolute |
Nominal |
| D5 |
6 |
0.5 |
25 |
60 |
25 |
| 01 |
13 |
1 |
50 |
95 |
50 |
| 05 |
25 |
5 |
75 |
110 |
75 |
| 10 |
35 |
10 |
1H |
150 |
100 |
| |
|
|
H5 |
200 |
150 |
|
|
Cartridge
Dimensions |
In diameter :
30mm
Out diameter :
62~65mm
Length(mm) :
250, 500,
750, 1000 |
|
Ordering Information
For example : If You want to Purchase IXD5A1E, You CAN Choose relevant items, At the each of DATA Articles.
| Brand |
Removal Ratings Grade |
End Cap Options |
Lengh |
O-ring Material |
IX :
IXTUS |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| Absolute |
Nominal |
Absolute |
Nominal |
| D5 |
6 |
0.5 |
25 |
60 |
25 |
| 01 |
13 |
1 |
50 |
95 |
50 |
| 05 |
25 |
5 |
75 |
110 |
75 |
| 10 |
35 |
10 |
1H |
150 |
100 |
| |
|
|
H5 |
200 |
150 |
|
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end |
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon
Encapsulated
Viton |
* Please inquire concerning any non-standard size.
Ordering Information
For example : If You want to Purchase IXD5A1E, You CAN Choose relevant items, At the each of DATA Articles.
|
| Removal Ratings Grade |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| Absolute |
Nominal |
Absolute |
Nominal |
| D5 |
6 |
0.5 |
25 |
60 |
25 |
| 01 |
13 |
1 |
50 |
95 |
50 |
| 05 |
25 |
5 |
75 |
110 |
75 |
| 10 |
35 |
10 |
1H |
150 |
100 |
| |
|
|
H5 |
200 |
150 |
|
|
| End Cap Options |
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end |
|
| Lengh |
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
|
| O-ring Material |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon
Encapsulated
Viton |
|
* Please inquire concerning any non-standard size.
