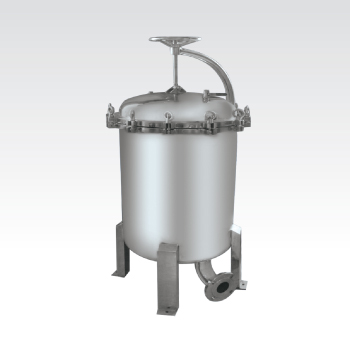

Davit Type of Multi Bag Filter Housing

Multi bag filter housing is designed to filter the liquid at more than 80㎥/h
flow rate.

The liquid flows from side through upper cover dome into bag filter.

The Special Locking device does not allow any bypass of liquid.

However, special specifications are available at the customer's request.

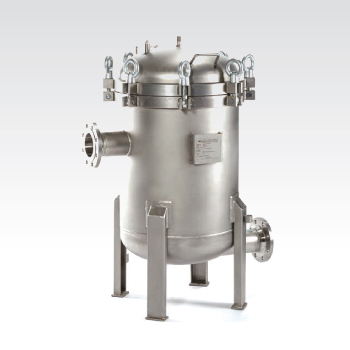

Spring Lid Type of Multi Bag Filter Housing

It opens and closes when the spring allows for minimum installation
space.

The locating outlet on the bottom side of housing allows the total height
30~50cm lower than standard type of Housing.

Thus no foothold or ladder is necessary when replacing filters.

Minimizing the number of eye bolts reduces the time
for Filter Replacement.

Bag Filter Size & Flow Rate

Type of Housing		Multi Bag Filter Housing (Max. Operating Pressure : 6 bar, Max. Operating Temperature : 120℃)
Code		212	412	612	812	1012	1212	1612	2012	2412
Material		SUS304 / SUS316 / Carbon Steel
Max. Operating Pressure(bar)		6
Max. Operating Temperature(℃)		120
Standard Inlet / Outlet		3″(80A)	4″(100A)	6″(100A)	8″(200A)	10″(250A)	10″(250A)	12″(300A)	14″(350A)	16″(400A)
Max. Flow Rate(㎥/h)		80	160	240	320	400	480	640	800	960
Flow Rate(㎥/h)		40	80	120	160	200	240	320	400	480
Bag Filter Size		2x12	4x12	6x12	8x12	10x12	12x12	16x12	20x12	24x12
Filter Area(㎥)		1	2	3	4	5	6	8	10	12
Filter Volume(ℓ)/(approx.)		160	210	340	460	660	820	1100	1600	2100
Housing Weight in Dry(㎏)/(approx.)		110	220	430	465	735	770	975	1050	1700
Dimension(mm)	A	1670	1759	1925	2070	2238	2358	2416	2772	2984
	B	1119	1151	1212	1261	1323	1433	1386	1637	1748
	C	400	435	510	560	635	660	735	790	880

Bag Filter Size & Flow Rate

Type of Housing		Multi Bag Filter Housing (Max. Operating Pressure : 6 bar, Max. Operating Temperature : 120℃)
Code		212	412	612
Material		SUS304 / SUS316 / Carbon Steel
Max. Operating Pressure(bar)		6
Max. Operating Temperature(℃)		120
Standard Inlet / Outlet		3″(80A)	4″(100A)	6″(100A)
Max. Flow Rate(㎥/h)		80	160	240
Flow Rate(㎥/h)		40	80	120
Bag Filter Size		2x12	4x12	6x12
Filter Area(㎥)		1	2	3
Filter Volume(ℓ)/(approx.)		160	210	340
Housing Weight in Dry(㎏)/(approx.)		110	220	430
Dimension(mm)	A	1670	1759	1925
	B	1119	1151	1212
	C	400	435	510

Type of Housing		Multi Bag Filter Housing (Max. Operating Pressure : 6 bar, Max. Operating Temperature : 120℃)
Code		812	1012	1212
Material		SUS304 / SUS316 / Carbon Steel
Max. Operating Pressure(bar)		6
Max. Operating Temperature(℃)		120
Standard Inlet / Outlet		8″(200A)	10″(250A)	10″(250A)
Max. Flow Rate(㎥/h)		320	400	480
Flow Rate(㎥/h)		160	200	240
Bag Filter Size		8x12	10x12	12x12
Filter Area(㎥)		4	5	6
Filter Volume(ℓ)/(approx.)		460	660	820
Housing Weight in Dry(㎏)/(approx.)		465	735	770
Dimension(mm)	A	2070	2238	2358
	B	1261	1323	1433
	C	560	635	660

Type of Housing		Multi Bag Filter Housing (Max. Operating Pressure : 6 bar, Max. Operating Temperature : 120℃)
Code		1612	2012	2412
Material		SUS304 / SUS316 / Carbon Steel
Max. Operating Pressure(bar)		6
Max. Operating Temperature(℃)		120
Standard Inlet / Outlet		12″(300A)	14″(350A)	16″(400A)
Max. Flow Rate(㎥/h)		640	800	960
Flow Rate(㎥/h)		320	400	480
Bag Filter Size		16x12	20x12	24x12
Filter Area(㎥)		8	10	12
Filter Volume(ℓ)/(approx.)		1100	1600	2100
Housing Weight in Dry(㎏)/(approx.)		975	1050	1700
Dimension(mm)	A	2416	2772	2984
	B	1386	1637	1748
	C	735	790	880
