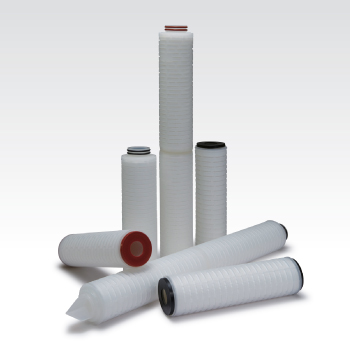

High quality Pleated
Meltblown media
IPH pleated cartridge filters offer the Superior Dirt Holding
Capacity and
High Removal Efficiency, compared to the
conventional pleated cartridges due to their multiple
layered construction.
IPP pleated cartridge filters provide the Superior
Removal Efficiency,
compared to the conventional pleated
cartridges due to their multiple
layered construction.
IPC pleated cartridge filters also provide a Long life Cycle.
The pleated cartridges are available in a wide selection
of
micron ratings to meet clients' filtration requirements.

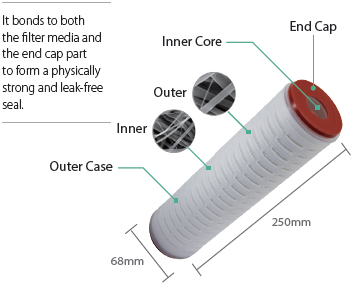

All the Polypropylene components and thermal bonded
manufacturing
enable the customers to have the smallest
contaminant extraction
and the higher durability.
No any adhesive minimizes contamination from the media
extraction.
The materials are on the FDA listed as acceptable things to be
Portable
and Edible.
Applications
- - Electronic : LCD, PDP, EL, Rinse Solution, Fine Chemical.
- - Pre-filtration, DI-water, Solvents. Selected Acids & Bases, Chemicals.
| Features |
Advantages |
Benefits |
| A wide selection of micron ratings |
A long life cycle & a large surface area |
The consistent production yields |
Polypropylene components(100%)
& thermal bonded manufacturing |
Reduced Product Waste |
The consistent performance
to
specification, too |
| Multiple layered construction |
Reduced Cartridge change-out frequent |
The Maximum Price Cutting |
No any adhesive minimizes
contamination from media
extraction |
Increased Productivity & Plant
capacity |
Allows the Maximum fluid
and
contaminant access to filter surface
area for the highest throughput |
| Features |
| A wide selection of micron ratings |
| Polypropylene components(100%) & thermal bonded manufacturing |
| Multiple layered construction |
| No any adhesive minimizes contamination from media extraction |
|
| Advantages |
| A long life cycle & a large surface area |
| Reduced Product Waste |
| Reduced Cartridge change-out frequent |
| Increased Productivity & Plant
capacity |
|
| Benefits |
| The consistent production yields |
| The consistent performance to
specification, too |
| The Maximum Price Cutting |
| Allows the Maximum fluid and
contaminant access to filter surface area for the highest throughput |
|
Flow Specification
- Liquid flow rate per 10" filter Cartridge
Flow Specification
- Liquid flow rate per 10" filter Cartridge
- Liquid flow rate per 10" filter Cartridge
Performance Specification
Material of
Construction |
Recommended
Operating Conditions |
Removal Ratings |
Cartridge
Dimensions |
Media :
Polypropylene
Support and
drainage :
Polypropylene
Core/cage/end-caps :
Polypropylene
Sealing :
Thermal bonding |
Maximum Differential
Pressure :
75psi(5.1bar) (at 25℃)
25psi(1.7bar) (at 80℃) |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| 02 |
02 |
25 |
2.5 |
22 |
20 |
| 03 |
0.3 |
45 |
4.5 |
33 |
30 |
| 04 |
0.45 |
50 |
5.0 |
44 |
40 |
| 06 |
0.6 |
60 |
6.0 |
55 |
50 |
| 12 |
1.2 |
11 |
10 |
77 |
70 |
|
Out diameter :
68mm
In diameter :
28/30mm
Length(mm) :
250, 254, 500,
508, 750, 762,
1000, 1016 |
Performance Specification
| Material of Construction |
Media : Polypropylene Support and
drainage : Polypropylene
Core/cage/end-caps : Polypropylene
Sealing : Thermal bonding |
|
| Recommended Operating Conditions |
Maximum Differential Pressure :
75psi(5.1bar) (at 25℃) 25psi(1.7bar) (at 80℃) |
|
| Removal Ratings |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| 02 |
02 |
25 |
2.5 |
22 |
20 |
| 03 |
0.3 |
45 |
4.5 |
33 |
30 |
| 04 |
0.45 |
50 |
5.0 |
44 |
40 |
| 06 |
0.6 |
60 |
6.0 |
55 |
50 |
| 12 |
1.2 |
11 |
10 |
77 |
70 |
|
|
| Cartridge Dimensions |
Out diameter : 68mm
In diameter : 28/30mm
Length(mm) : 250, 254, 500, 508, 750, 762, 1000, 1016 |
|
Ordering Information
For example : If You want to Purchase IPH02A5ES, You CAN Choose relevant items, At the each of DATA Articles.
| Brand |
Type |
Media |
Removal Ratings Grade |
End Cap Options |
Lengh |
O-ring Material |
Special Option |
I :
IXTUS |
P :
Pleated |
H : High
Particle
Holding PP
grade
P : High
Performance
PP grade
C : High
Cleanness
PP grade
G : Glass
Media |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| 02 |
02 |
25 |
2.5 |
22 |
20 |
| 03 |
0.3 |
45 |
4.5 |
33 |
30 |
| 04 |
0.45 |
50 |
5.0 |
44 |
40 |
| 06 |
0.6 |
60 |
6.0 |
55 |
50 |
| 12 |
1.2 |
11 |
10 |
77 |
70 |
|
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end
G : 020 Internal O-ring
M : 226 O-ring/Flat end
(Modified Flat end) |
5 : 5"
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon
Encapsulated
Viton |
S : SUS ring
Insertionated |
* Please inquire concerning any non-standard size.
Ordering Information
For example : If You want to Purchase IPH02A5ES, You CAN Choose relevant items, At the each of DATA Articles.
|
|
| Media |
H : High Particle Holding PP grade
P : High Performance PP grade
C : High Cleanness PP grade
G : Glass Media |
|
| Removal Ratings Grade |
| Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
Grade |
Rating
(㎛) |
| 02 |
02 |
25 |
2.5 |
22 |
20 |
| 03 |
0.3 |
45 |
4.5 |
33 |
30 |
| 04 |
0.45 |
50 |
5.0 |
44 |
40 |
| 06 |
0.6 |
60 |
6.0 |
55 |
50 |
| 12 |
1.2 |
11 |
10 |
77 |
70 |
|
|
| End Cap Options |
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end
G : 020 Internal O-ring
M : 226 O-ring/Flat end (Modified Flat end) |
|
| Lengh |
5 : 5"
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
|
| O-ring Material |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon Encapsulated Viton |
|
| Special Option |
| S : SUS ring Insertionated |
|
* Please inquire concerning any non-standard size.
