Absolute-Rated Depth Filters
These Filters are the High Efficiency cartridge filter that has the Excellent
compatibility with
most range of chemical solutions.
It has the Enhanced particle removal in the aqueous fluids.
So It has
the low extractables and media migration.

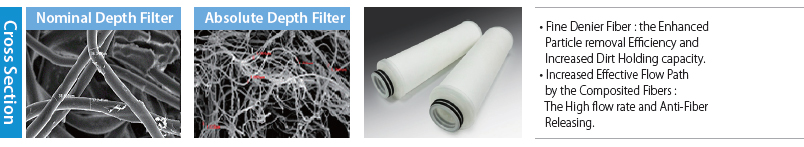

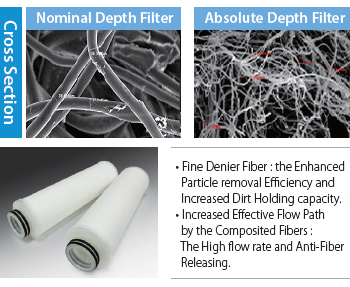

Because of the Nano-Fiber construction, it has the High quality
cleanness in
process line, the consistent production yields and quality.
There is any Fibers' Non-Releasing during variations in the flow or
pressure.
It means that the Fibers are continuous and fixed during
the manufacturing
process. Furthermore, it has the High Dirt Holding
capacity, too.
Based on the widely accepted and modified Filtration Test,
those things can be
expected to yield longer life and higher flow
rates when compared with existing
products of similar physical
appearance.
It has the wide choice of particulate removal efficiencies from 0.1 μm to
5 μm.
Its rate is Absolute, to optimize filter ratings for each application.
The materials are on the FDA listed as acceptable things to be Portable
and Edible.
High Efficiency
These Filters are the Absolute-rated Depth filters with the Polyolefine Fibers
and Nano-Fibers.
It is good for the CMP(Chemical Mechanical Polishing) process. Because the
Absolute grade is constructed of the fibers to ensure
High efficiency at the
Multi-layer.
Among them, IXA (IXTUS Bi-combo Absolute) is the Higher Functional filter that
maximizes the Higher Water Flow Rate, Removal
Efficiency
of the processed
water and chemical solution, simultaneously.
It also maximizes the combining power of each non-woven layers.
Its Characteristics is the Heat-combination Chemical Free.
And it keeps
a Highlevel
cleanness.
It has the Linear Flow path and very stable Pore size. So it has the Enhanced
porosity
in the cartridge filter.
IXA is used of the Bi-combo structure, on the base of the existing IA
construction. So its high level durability is suitable for the fields
of the polar solvent, pigment and slurry by the 3-dimensional structure.
It has upgraded structures for the viscosity-customized.
Air Flow Specification
| Grade(㎛) |
Air Flow (lpm) |
| 0.1 |
|
| 0.5 |
356 |
| 01 |
399 |
| 03 |
415 |
| 05 |
460 |
(Air Flow at 100 kPa)
Flow Specification
- Liquid flow rate per 10" filter Cartridge
- Liquid flow rate per 10" filter Cartridge
Performance Specification
Material of
Construction |
Recommended
Operating Conditions |
Removal Ratings |
Cartridge
Dimensions |
Removal
Efficiency |
IA Media :
Polyolefine Ultra-fine fiber
Core & cage : Polyolefine
And Sealing : Thermal bonding
IXA Media :
Bi-compnent fiber & nano fiber
And Sealing : Thermal bonding |
Maximum Differential
Pressure :
70psi(4.8bar) (at 25℃)
Maximum Differential
Pressure :
70psi(4.8bar) (at 25℃)
Maximum Temperature :
80℃ |
| Grade |
Rating(㎛) |
| D1 |
0.1 |
| D2 |
0.2 |
| D5 |
0.5 |
| 1 |
1 |
| 3 |
3 |
| 5 |
5 |
|
In diameter
: 30mm
Out diameter
: 62~65mm |
Absolute grade
(99.98%) |
Performance Specification
| Material of
Construction |
IA Media : Polyolefine Ultra-fine fiber
Core & cage : Polyolefine
And Sealing : Thermal bonding
IXA Media : Bi-compnent fiber & nano fiber
And Sealing : Thermal bonding |
|
| Recommended
Operating Conditions |
Maximum Differential Pressure :
70psi(4.8bar) (at 25℃)
Maximum Differential
Pressure :
70psi(4.8bar) (at 25℃)
Maximum Temperature : 80℃ |
|
| Removal Ratings |
| Grade |
Rating(㎛) |
| D1 |
0.1 |
| D2 |
0.2 |
| D5 |
0.5 |
| 1 |
1 |
| 3 |
3 |
| 5 |
5 |
|
|
| Cartridge Dimensions |
In diameter
: 30mm
Out diameter
: 62~65mm |
|
| Removal Efficiency |
| Absolute grade (99.98%) |
|
Ordering Information
For example : If You want to Purchase IAD1A5EC, You CAN Choose relevant items, At the each of DATA Articles.
| Brand |
Type |
Removal Ratings Grade |
End Cap Option |
Lengh |
O-ring Material |
Special Option |
I :
IXTUS |
A : Absolute
Depth
XA : Absolute
Depth |
| Grade |
Rating(㎛) |
| D1 |
0.1 |
| D2 |
0.2 |
| D5 |
0.5 |
| 1 |
1 |
| 3 |
3 |
| 5 |
5 |
|
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end |
5 : 5"
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon
Encapsulated Viton |
C : DI cleaning
S : SUS ring
Insertion |
* Please inquire concerning any non-standard size.
Ordering Information
For example : If You want to Purchase IAD1A5EC, You CAN Choose relevant items, At the each of DATA Articles.
|
| Type |
A : Absolute Depth
XA : Absolute Depth |
|
| Removal Ratings Grade |
| Grade |
Rating(㎛) |
| D1 |
0.1 |
| D2 |
0.2 |
| D5 |
0.5 |
| 1 |
1 |
| 3 |
3 |
| 5 |
5 |
|
|
| End Cap Option |
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end |
|
| Lengh |
5 : 5"
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
|
| O-ring Material |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon Encapsulated Viton |
|
| Special Option |
C : DI cleaning
S : SUS ring Insertion |
|
* Please inquire concerning any non-standard size.
