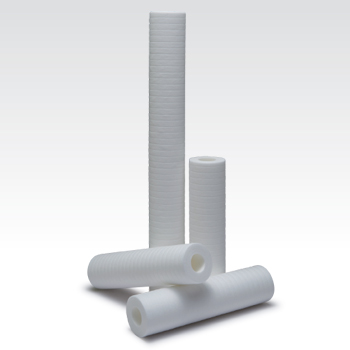

Grooved High Flow Depth Cartridge Filters
are constructed of the PP/PE Bi-component fibers.
Grooved IG Filter has the High Dirt Holding Capacity
and Flow Rates.
It is a Heat-combination Chemical Free Filter.
Also available in a wide selection of micron
ratings from 1㎛ to 100㎛.
The materials are on the FDA listed as acceptable
things to be Portable
and Edible.
Features and Benefits
- - Grooved IG Filter with the extended surface area.
- - A Longer-Life cycle more than normal depth filters.
- - The Wide Chemical Compatibility, too.
- - The Lower filtration costs per years.
- - The consistent production yields and quality.
- - The High Dirt Holding capacity for the long life and Lower filtration costs.
Flow Specification
- Liquid flow rate per 10" filter Cartridge
- Liquid flow rate per 10" filter Cartridge
Performance Specification
Material of
Construction |
Recommended
Operating Conditions |
Removal Ratings |
Cartridge
Dimensions |
Media :
Polypropylene/
Polyethylene
Bi-component
Fiber
Structure :
Coreless cartridge |
Maximum
Differential Pressure :
70psi(4.8bar) (at 25℃)
Maximum
Temperature :
(at 80℃) |
| IG Grooved Depth Filter |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| 01 |
1 |
50 |
50 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
|
|
| 25 |
25 |
|
|
|
In diameter :
30mm
Out diameter :
60~63mm
Length(mm) :
250, 500,
750, 1000 |
Performance Specification
| Material of Construction |
Media :
Polypropylene / Polyethylene Bi-component Fiber
Structure : Coreless cartridge |
|
| Recommended Operating Conditions |
Maximum Differential Pressure :
70psi(4.8bar) (at 25℃)
Maximum Temperature :
(at 80℃) |
|
| Removal Ratings |
| IG Grooved Depth Filter |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| 01 |
1 |
50 |
50 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
|
|
| 25 |
25 |
|
|
|
|
Cartridge
Dimensions |
In diameter : 30mm
Out diameter : 60~63mm
Length(mm) : 250, 500, 750, 1000 |
|
Ordering Information
For example : If You want to Purchase IG01A1E, You CAN Choose relevant items, At the each of DATA Articles.
| Brand |
Type |
Removal Ratings Grade |
End Cap Options |
Lengh |
O-ring Material |
I :
IXTUS |
G : High
Capacity
Depth
(Grooved) |
| IG Grooved Depth Filter |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| 01 |
1 |
50 |
50 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
|
|
| 25 |
25 |
|
|
|
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end |
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon
Encapsulated
Viton |
* Please inquire concerning any non-standard size.
Ordering Information
For example : If You want to Purchase IG01A1E, You CAN Choose relevant items, At the each of DATA Articles.
|
| Type |
| G : High Capacity Depth (Grooved) |
|
| Removal Ratings Grade |
| IG Grooved Depth Filter |
| Grade |
Rating(㎛) |
Grade |
Rating(㎛) |
| 01 |
1 |
50 |
50 |
| 05 |
5 |
1H |
100 |
| 10 |
10 |
|
|
| 25 |
25 |
|
|
|
|
| End Cap Options |
A : 250mm D/O
B : 254mm D/O
C : 222 O-ring/Flat end
D : 226 O-ring/Flat end
E : 222 O-ring/Fin. end
F : 226 O-ring/Fin. end |
|
| Lengh |
1 : 10"
2 : 20"
3 : 30"
4 : 40" |
|
| O-ring Material |
E : EPDM
N : Buna-N
S : Silicone
V : Viton
T : Teflon Encapsulated Viton |
|
* Please inquire concerning any non-standard size.
